Rigol DS1102E - Osciloscop 2 canale, 100 MHz

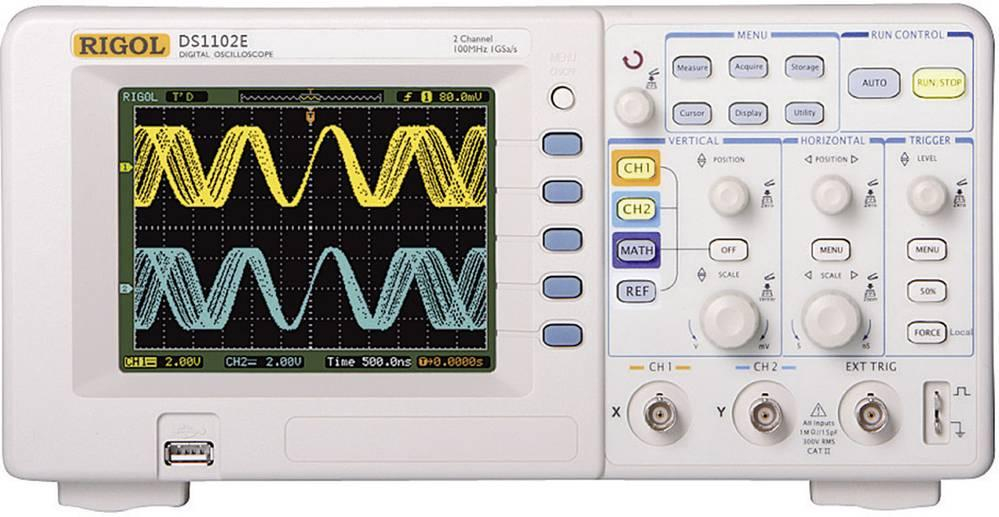

Rigol DS1102E - Osciloscop 2 canale, 100 MHz

2 Analog channels + external trigger
1 Million point deep memory
1 GSa/sec max sample rate
7” TFT QVGA (320X240) with 64K color LCD backlit display
Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate

Cere Oferta

Cod Produs: DS1102E Ai nevoie de ajutor? 0785858858

Adauga la Favorite

Descriere
Review-uri (0)

Osciloscop digital 2 canale 100 MHz, Rigol DS1102E

Specificatii:

2 Analog channels + external trigger
1 Million point deep memory
1 GSa/sec max sample rate
7” TFT QVGA (320X240) with 64K color LCD backlit display
Trigger modes: edge, pulse width, slope, video, pattern, continuous time, and alternate

The Rigol DS1102E is a high quality two channel digital storage oscilloscope. It offers a real-time sample rate of up to 1 GSa/s and up to 100 MHz of bandwidth.

It not only has compact design and 64K TFT color LCD, but also powerful functions: Up to 1M memory depth, with Ultrazoom function, it can enable users to observe details while surveying the whole waveform; 7 trigger modes, adjustable trigger sensitivity, USB Host to support USB flash memory and USB printer, and other traditional functions of RIGOL oscilloscopes. The quality of the Rigol oscilloscopes is comparable to Agilent and Tektronix oscilloscopes.

Model	DS1102E
Bandwidth	100 MHz
Analog Channels	2
Vertical Sensitivity	2 mV/div - 10V/div
Real-time Sample Rate	1 GSa/s（each channel），500 MSa/s（dual channels）
Equivalent Sample Rate	10 GSa/s
Memory Depth	Mode	capture rate	common	long memory
	one channel	1 GSa/s	16 kpts	N/A
		500 MSa/s	16 kpts	1 Mpts
	dual channels	500 MSa/s	8 kpts	N.A.
		250 MSa/s	8 kpts	512 kpts
		or less
Standard Interface	USB Host & Device, RS-232, P/F Out
Vertical Resolution	8 bits
Math	＋, －, ×, FFT
Max Input Voltage	All inputs 1MΩ‖15pF 300 V RMS CATⅠ
Cursor Measurements	Manual, Track and Auto Measure modes
